Projects in progress

Details

Last Updated: 12 September 2024

Publication list with hyperlink



As of 2024 July 7th, the project gathers:

21 conference publications and 12 refereed publications, and 2 defended PhD theses.

Project overview publications

[1] SPEED: get ready for (PCS) rush hour

Martinez et al. ESO Messenger 2023 n°190

[2] The segmented pupil experiment for exoplanet detection VI. From early design to the first lights

Martinez et al. Proceeding of the SPIE 2022

[3] The segmented pupil experiment for exoplanet detection V. System control and software infrastructure

Martinez et al. Proceeding of the SPIE 2022

[4] The segmented pupil experiment for exoplanet detection. IV. A versatile image-based wavefront sensor for active optics

Martinez et al. Proceeding of the SPIE 2020

[5] The segmented pupil experiment for exoplanet detection. III. Advances and first light with segment cophasing

Martinez et al. Proceeding of the SPIE 2018

[6] The segmented pupil experiment for exoplanet detection. II. Design advances and progress overview

Martinez et al. Proceeding of the SPIE 2016

[7] The segmented pupil experiment for exoplanet detection

Martinez et al. Proceeding of the SPIE 2014

[8] The segmented pupil experiment for exoplanet detection: SPEEDing up R&D towards high-contrast imaging instruments for the E-ELT

Martinez et al. ESO Messenger 2015 n°159

Key hardware studies publications

[1] High contrast at small angular separations: III. Impact on the dark hole of MEMS deformable mirror control electronics

Martinez et al. MNRAS 2024, under press

[2] Revisiting optical transfer function-based focal plane wavefront sensors for correcting NCPAs

Martinez et al. Proceeding of the SPIE 2024

[3] Differential optical transfer function (dOTF) wavefront sensing with the SPEED test-bed

[4] Phase-induced amplitude apodization complex mask coronagraph (PIAACMC) without PIAA: redesigning a phase-induced amplitude apodization to a conventional pupil amplitude apodization

Sallard et al. Proceeding of the SPIE 2024

[5] Bisymmetric pupil modification deconvolution strategy for differential optical transfer function (dOTF) wavefront sensing

Martinez et al. A&A 684 L5 Letter 2023

[6] Design, manufacturing and testing of phase-induced amplitude apodization and phase-shifting optics for segmented telescopes

Martinez et al. A&A 2023, Vol. 680, A6

[7] Gearing up the SPEED wavefront shaping strategy

Doyen et al. Proceeding of the SPIE 2020

[8] Metrological characterization of the SPEED test-bed PIAACMC components

Barjot et al. Proceeding of the SPIE 2020

[9] High contrast at small angular separations: II. Impact on the dark hole of a realistic optical setup with two deformable mirrors

Beaulieu et al. MNRAS 2020, 498

[10] Design and manufacturing of a multi-zone phase-shifting coronagraph mask for extremely large telescopes

Martinez et al. A&A 2020, Vol. 635, A126

[11] Fast-modulation imaging with the self-coherent camera

Martinez, A&A Letter 2019, 629, L10

[12] An end-to-end Fresnel propagation model for SPEED: PIAACMC implementation and performance

Beaulieu et al. Proceeding of the SPIE 2018

[13] Design, specification and manufacturing of a PIAACMC for the SPEED testbed

Martinez et al. Proceeding of the SPIE 2018

[14] Fine cophasing of segmented aperture telescopes with ZELDA, a Zernike wavefront sensor in the diffraction-limited regime

Janin-Potiron et al. A&A 2017

[15] High-contrast imaging at small separations: impact of the optical configuration of two deformable mirrors on dark holes

Beaulieu et al. MNRAS 2017, 469

[16] Self-coherent camera as a focal plane phasing sensor

Janin-Potiron et al. A&A 2016, 592, A110

[17] The self-coherent camera as phasing sensor: from numerical simulations to early experiments

Janin-Potiron et al. Proceeding of the SPIE 2016

[18] SPEED design optimization via Fresnel propagation analysis

Beaulieu et al. Proceeding of the SPIE 2016

[19] The self-coherent camera as a focal plane phasing sensor

Janin-Potiron et al. EAS publications series 78-79 2016

[20] System analysis of the segmented pupil experiment for exoplanet detection – SPEED – in view of the ELTs

Preis et al. Proceeding of the AO4ELT 4th Edition 2015

[21] A Fresnel propagation analysis for SPEED

Beaulieu et al. Proceeding of the AO4ELT 4th Edition 2015

[22] The self-coherent camera as a phasing sensor: overview and early comparison with the Zenike phase contrast sensor

Janin-Potiron et al. Proceeding of the AO4ELT 4th Edition 2015

Project related publications

[1] Differential optical transfer function (dOTF) broad spectrum wavefront sensing using integral field unit spectroscopy

Martinez, A&A 684 L5 Letter 2024

[2] Analytical decomposition of Zernike and hexagonal modes over a hexagonal segmented optical aperture

Janin-Potiron, Martinez and Carbillet, OSA Continuum  2018 - 1(2), 715-726

[3] Laser guide stars used for cophasing broad capture ranges

Martinez and Janin-Potiron, A&A Letter 2016, 593, L1

PhD Thesis

[1] Correction active des discontinuités pupillaires des télescopes à miroir segmenté pour l’imagerie haut contraste et la haute résolution angulaire

Janin-Potiron Pierre, Université Côte d’Azur 2017 (Prix SF2A 2018)

[2] Imagerie optique à très haut contraste : une approche instrumentale optimale

Beaulieu Mathilde, Université Côte d’Azur 2017







Details

Last Updated: 21 July 2023

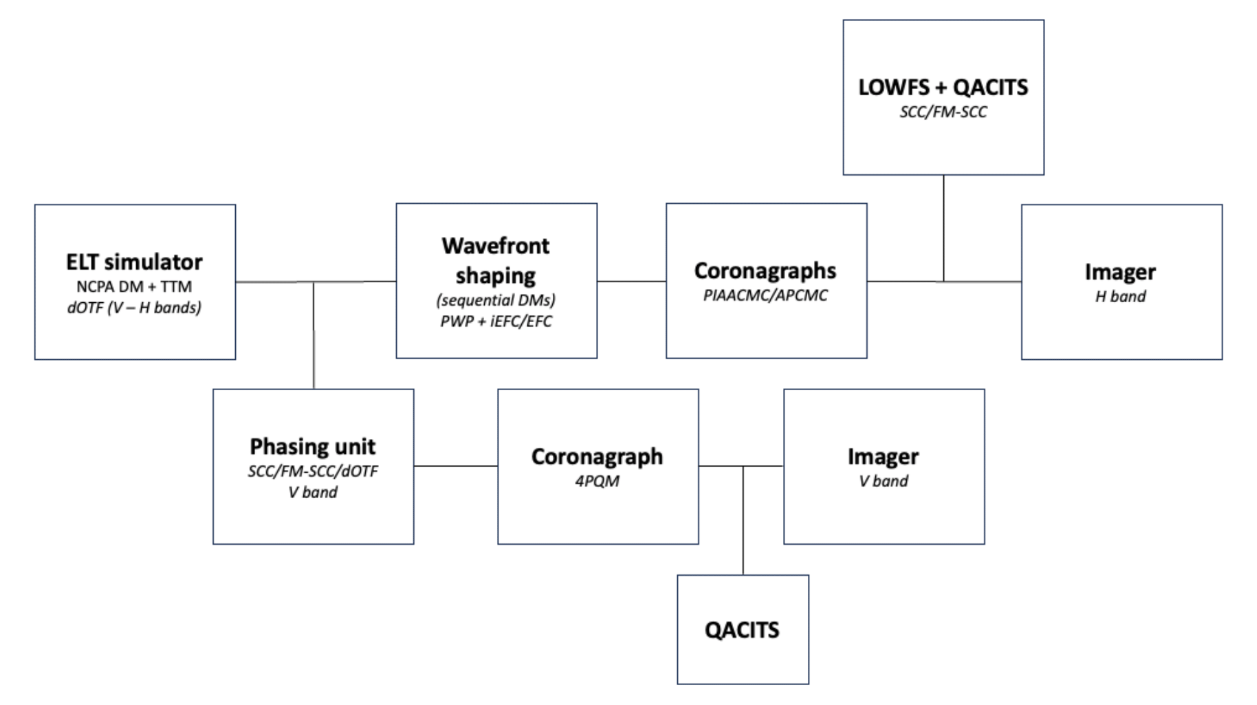

The architectural principle of the SPEED bench is presented in the above diagram. The field of view of interest is restricted to 8 λ/D in radius given the aimed objective of high contrast at small angular separations. The bench is therefore composed of a visible cophasing optical path (in blue) and a near-infrared path (in red) dedicated to high contrast.

The common path is in orange colour in the 3D CAO view of the bench presented above. The visible path dedicated to the optical cophasing corresponds to the blue lines and the near-infrared path, dedicated to high-contrast imaging, corresponds to the red lines.

The Speed bench is installed in a clean-room environment (ISO7 classroom) at the Lagrange Laboratory, FIZEAU building on the Valrose campus in the city centre of Nice.



Details

Last Updated: 29 January 2024



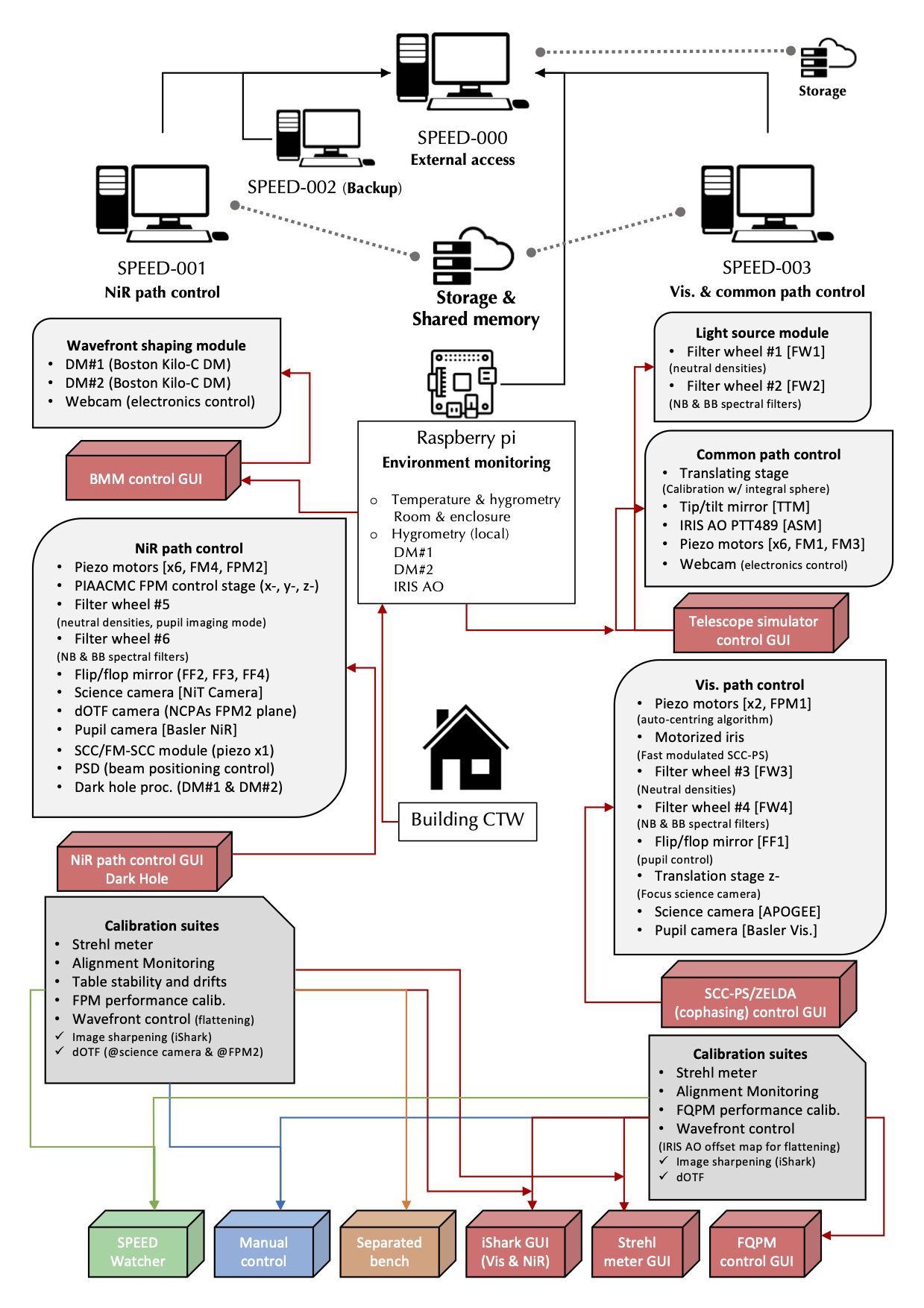

The SPEED project is an instrumental facility designed to study high-contrast imaging techniques using a segmented telescope, aiming to achieve very close angular separations in preparation for the next generation of ground- and space-based observatories. The bench integrates a segmented telescope simulator with 163 segments, co-phasing optics (in the optical domain), and a multi-DM architecture combined with deep coronagraphic imaging (in the near-infrared). The scientific field of view ranges from 1 to 8 λ/D in the H-band. In terms of key hardware, the bench includes a super-continuum NKT light source, an integral sphere, a tip/tilt mirror, an IRIS AO PTT489 segmented deformable mirror, 2 Kilo-C deformable mirrors from Boston Micromachines, SCC-PS and/or ZELDA-PS sensors (for cophasing), a PIAACMC (coronagraph), and SCC. The bench is currently in exploitation phase and housed in an ISO 7 room in the FIZEAU building. The SPEED project enjoys broad support at the local, national, and European levels (as indicated at the bottom of the page).

In particular, the SPEED testbed searches for participating in the future instrumental development of an exoplanet hunter around late-type stars (M-stars).

Three main research axes are studied:

• cophasing optics (fine cophasing and monitoring) from the scientific image
• very small IWA coronagraphy (inner working angle)
• active optics with multi-DM for high-contrast imaging (wavefront shaping for dark hole generation)

The testbed will also offer the possibility to study ELT's inherent drawbacks from its segmented nature and emphasize the study of their impact on high-contrast (e.g., missing segment, cophasing residual, mixing XAO residuals and cophasing residuals, etc.)

All the SPEED OAPs have been realized by the OCA optical workshop.



Crédit: J. Dejonghe - C. Gouvret



 Simulated pupil of the  SPEED telescope simulator exhibiting 30% central obscuration, 6 spiders and 163 segments.



Simulated NiR PSF image. The Blue circle defines the wavefront shaping DMs cut-off frequency. The red circle defines the field of view (FoV) targetted by the project and is restricted to small angular separations. Green circles localized the first diffractive signatures from the primary mirror segmentation.
